IP64
Build-to-order (BTO)

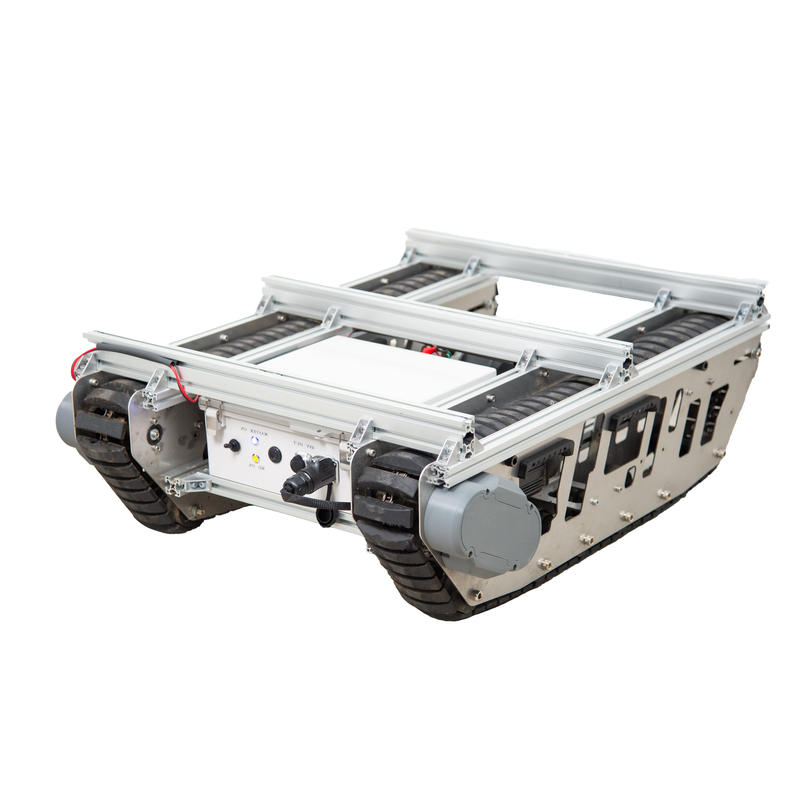

CuGoMEGA M2 Base Kit
Payload
350 kg
IP RatingIP64
Max Speed
1.2 km/h
Max Climb
20°
Up to 16 cm Obstacle Clearance
Stable and powerful on farmland, slopes, sandy beaches, and rubble. Clears obstacles up to 16 cm high — handling terrain that would stop conventional platforms in their tracks.
350 kg Payload & High-Power Drive
Carries up to 350 kg with two units linked. The 400 W brushless DC motor delivers both raw power and precise speed control even under heavy loads.
IP64-Rated Dust & Water Resistance
IP64-rated protection keeps it running confidently in rain and mud. Wash it down after use — field maintenance is quick and straightforward.
Flexible Customization with Standard Aluminum Frame
Standard aluminum frame makes reconfiguration straightforward for any application. RC signal, RS232, and CAN-bus interfaces allow seamless integration with existing systems.
Delivery: approx. 3 months after order
¥1,980,000
Tax included
Dimensions & Performance
DimensionsW1141 × D953 × H525 mm
WeightApprox. 90 kg
Max Payload350 kg
Max Speed1.2 km/h
IP RatingIP64
Max Climb Angle20°
System & Interface
Motor Output400W × 2
Motor ModelBrushless DC Motor
Battery48V / 30Ah
InterfaceRS-232 / CAN-BUS
Emergency StopWith emergency stop switch
Agriculture & Harvest Transport
Heavy-duty hauling of harvests and materials across farmland and orchards. Stable on muddy ground and narrow paths where wheeled carriers cannot go.
Construction & Civil Engineering
Moves heavy materials across gravel, rubble, and step-heavy construction sites. The large frame and high payload capacity handle the harshest job-site conditions.
Disaster Response & Rescue Support
Transports supplies and equipment through rubble and uneven terrain at disaster sites. IP64 protection and high ground clearance keep it operational in the worst conditions.
Large-Scale Robot & Autonomous Transport R&D
CAN-bus and RS232 interfaces make it a capable base for large autonomous transport robots and research platforms requiring heavy-duty mobility.
- CuGoMEGA M2: 2 units
- Electrical Control Box: 1 unit
- Multi-controller (KO PROPO MC-8): 1 unit
- CuGoMEGA M2 Connection Frame Set: 1 set
- Battery & Charger: 1 set
- Emergency Stop Switches: 2 units
- 【Options】
- Stop Switch Mount: ¥11,880 (incl. tax)
- Cargo Bed Frame: ¥29,700 (incl. tax)
- Cargo Bed Top Plate: ¥17,820 (incl. tax)
